The MINI DC UPS is a powerful and efficient backup power unit designed to provide uninterrupted power to your essential electronic devices. With a built-in lithium battery and microprocessor-controlled system, it offers advanced protection and superior performance for a wide range of applications. This versatile UPS supports a wide input voltage range (90-264Vac, 50-60Hz) and delivers a maximum output power of 24W, making it suitable for powering routers, IP cameras, biometric systems, POS devices, and small switches. It comes equipped with multiple output interfaces, including 5V USB (2.4A), 9V/12V DC (2A), and 15V/24V POE (1.5A/1A) — allowing you to power multiple types of devices simultaneously. Safety and reliability are at the core of the MINI DC UPS. It features overload, short-circuit, overcharge, and over-discharge protection, ensuring safe and stable power delivery. The auto start function ensures immediate operation when plugged in, minimizing downtime during power interruptions.

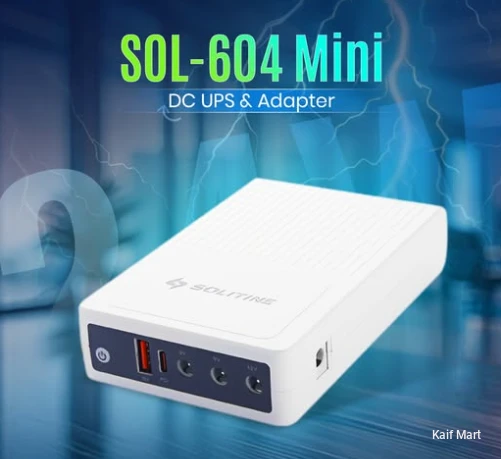

1. Model: SOL-604
2. Rated Working Voltage: 12V2A
3. Maximum Output Power: 24W
4. USB/DC Interface 1: 5V USB
5. DC Interface 3: 9V/9V 12V2A
6. Unit Dimensions: 199 x 113 x 51mm
7. Battery Specifications: 18650 Lithium Battery
8. Capacity Of Battery : 10000mAh
9. Product Color: White
10. Port : Type C
11. Auto Start When Plugged In
12. Overload & Short-Circuit Protection
13. Overcharge & Over-Discharge Protection
14. Microprocessor Controlled System

    Main Feature



    Battery And Power
    Input Power	90-264Vac / 50-60Hz
    Output Power	USB/DC Interface 1: 5V DC, 2.4A DC Interface 2: 9V DC / 12V DC, 2A POE Interface: 15V DC / 24V DC, 15V 1.5A / 24V 1A
    Battery capacity	10000mAh Lithium Battery

    Others
    Other Features	Auto Start When Plugged In Microprocessor Controlled System POE Output Polarity: +4,5pins / -7,8pins

    Physical Specification
    Color	White
    Dimension	178 x 158 x 38 mm

    Technical Info
    Protection Type	Overload & Short-Circuit Protection Overcharge & Over-Discharge Protection

    Warranty Information
    Warranty	1 Years
